Beginners and seasoned Orx developers may not have tapped into the power that the Orx Console gives you. Or may not even have realised it exists. This tool can give you access to your game objects and config values during live execution in realtime.

It will let you alter any of these elements and values. You can experiment with commands which can then be used in Tracks within your game.

All Orx applications and games have an Orx Console compiled directly in.

This guide will take you on a tour of some of the power of the Console to help you get comfortable using it. Hopefully after working through this guide you will see many possibilities that are available, and how they can be applied.

The Orx Console will save you many hours of fiddly experimentation.

It will be helpful to use a common project that is available to everyone so that you can work with commands and configuration demonstrated in this guide.

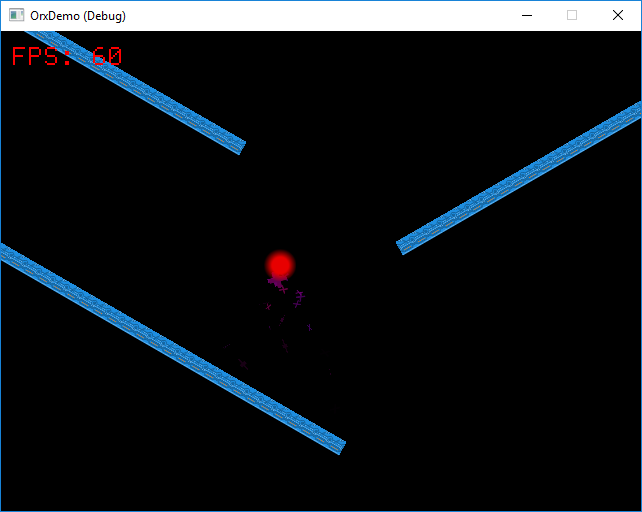

If you are using the git repo version of Orx, you can use the Bounce Demo. Start it by executing: code/bin/orxd.exe

The Bounce Demo is not available in the downloadable release versions of Orx. Otherwise just use a project of your own.

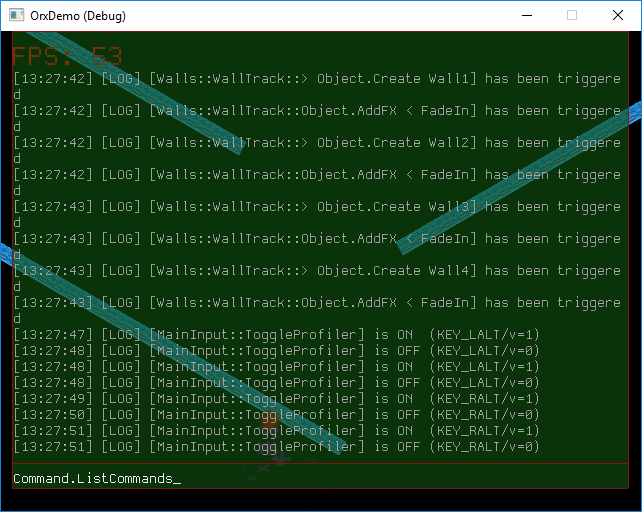

When running your game, to start the Console, press the backquote key:

`

The backquote key is below the ESC key and above the Tab key. Press backquote again to close the console.

There are over 170 commands available in the console. You can list them all with:

Command.ListCommands (then press enter)

All commands will be printed to the screen. The list can be scrolled with the mouse wheel or the PageUp and PageDown keys.

Partial commands can be typed and then use the Tab key to auto complete. For example, if we wanted to get the Orx version, the command would be:

Command.Version

If you type: Command.V <tab>

the Console will autocomplete to Command.Version for you, as this is the only command starting with V.

The tab key also cycles between multiple possible commands listed. For example, if you wanted the command:

Command.ListAliases

You could type: Command.Lis <tab>

Both Command.ListAliases and Command.ListCommands would be listed.

Press Tab to cycle between both commands.

Press Space to select the command.

Command history can be accessed by pressing the Up Arrow or Down Arrow keys.

Different executables (debug/release) will have different histories. So when you key up or down through histories, these will be tied to a different project configurations/executables.

Command histories are saved in the same folder as your executable, with a .cih extension. If your exe is called: mygame.exe then you'll have a mygame.cih created/updated whenever you quit your game. This is just a text file. Very handy for getting a copy of any command that you have used in the console. We'll cover some uses later.

The Insert key switches between Overwrite and Insert modes.

You can get help on any command if you are unsure of how to use it. In the next section we will make use of the Config.GetValue command. If you don't know how to use it, you can get help on it with:

Command.Help Config.GetValue

: {orxSTRING Value} Config.GetValue (orxSTRING Section) (orxSTRING Key) [orxS32 Index = -1] [orxBOOL Verbatim = false]

The info in between the {} is the return value. Then the command itself. Values in between () are required values. Values in between [] are optional values.

Commands utilize the following types:

• orxBOOL: Must be either 'true' or 'false'.
• orxFLOAT: Any floating point value.
• orxS32: signed 32-bit value
• orxS64: signed 64-bit value
• orxU32: unsigned 32-bit value
• orxU64: unsigned 64-bit value
• orxNUMERIC: Any numerical type, ie. a string that can be interpreted as a vector, an int (decimal, hexa, octal, binary) or a float
• orxSTRING: Any String value.
• orxVECTOR: a 3-component vector (mathematics)

Rather than typing all your commands, you have the choice to copy commands from this tutorial directly into the console using the clipboard. Select the following command and copy it into your clipboard:

Command.Version

Now paste with Control-V into the command bar of the Orx Console. Your command will be pasted in, and you can press enter to execute it.

Getting a value from the config

In the BounceAlt.ini file, the following section is defined there:

[Ball]
LifeTime = 10.0

We can retrieve this value with:

Config.GetValue Ball LifeTime

The output is:

: 10.0

Setting a value in the config

We can change this value in realtime to affect the game:

Config.SetValue Ball LifeTime 1.5

The output is:

: 1.5

Press the ` key to close the console and press the left mouse button to spawn some objects. You'll notice each object now only lives for 1.5 seconds rather that 10. This is an instant change within the game.

In this way, you can try out all sorts of parameter changes without stopping and starting your game. These changes remain in memory. They are not changed in your original config files.

There is a way to save your changes out to a single file, which we will cover later.

Two very handy settings available in Orx are turning on physics debugging and showing the FPS. These settings can be changed from the Console

If you wanted to check if the ShowFPS property is on or off you can use:

Config.GetValue Render ShowFPS

Output: (true or false)

If you wanted to turn it off:

Config.SetValue Render ShowFPS false

or

Config.SetValue Render ShowFPS 0

In the same way you could turn on Physics ShowDebug with:

Config.SetValue Physics ShowDebug 1

Output

: 1

Or the profiler with:

Config.SetValue Render ShowProfiler 1

These are good examples, and you can also do exactly the same thing with all properties in your configuration files.

So far you might be thinking that the commands are little long. Soon we will address this by introducing aliases for commonly used commands. For now we'll stick to common longhand commands.

Retrieving values and setting values on Object sections is no different to the Physics and Render sections demonstrated above. Let's try some.

Getting a texture used by an object

Config.GetValue ParticleGraphic Texture

: x.png

This is the graphic used by the spawner controlled by the mouse. Let's change it:

Config.SetValue ParticleGraphic Texture ball.png

: ball.png

Notice that the objects being spawned are now balls.

Random values and Lists

BounceAlt.ini contains the following section:

[Fade]
SlotList = AlphaFadeIn#Scale#Wobble#Vanish

This command will get one value from the list at random:

Config.GetValue Fade SlotList

: Wobble (or AlphaFadeIn or Scale or Vanish)

You can retrieve a specific item in the list via an index value:

Config.GetValue Fade SlotList 1

: Scale

The first value starts at 0.

Not only can you find out information from the config files, you can also find objects running live in your game and affect them.

You can get an object using:

Object.FindNext Wall1

: 0x00000007000000EF

The return ID is your object.

We can create a second Wall1 object with:

Object.Create Wall1

: 0x0000000A000F12AF

You may not notice any change, and that's because the two Wall1's are on top of each other. We can change the position of the new Wall1 object with:

Object.SetPosition <press tab> (100, 100, 0)

: 0x0000000A000F12AF

When you press tab, it inserts the result of the last command in place. In this case, the object ID.

Now that there are two Wall1 objects, we can cycle between.

Start again with:

Object.FindNext Wall1

: 0x00000007000000EF

Then find the second one from the first with:

Object.FindNext Wall1 <press tab>

: 0x0000000A000F12AF

Finally the last object can be deleted from the game with:

Object.Delete <press tab>

Not only can we get object IDs, and affect objects using their ID, objects can also be pushed onto the stack.

Values can be pushed onto the stack as well. They can then be popped and used with other commands.

> Object.FindNext Wall1

Notice the > symbol at the beginning of the command. This means: take the result of the command and push it onto the stack.

In our example above, the result of Object.FindNext is an object ID. This ID will be pushed onto the stack.

We can now use this value with our next command, changing the object position:

Object.SetPosition < (100,0,0)

The < symbol above means to pop the last saved value from the stack and use it within the command. This simply means: set the position of the object ID popped from the stack to (100, 100, 0).

The result of any command can be pushed onto the stack.

You can create any type of section or object in config without needing it to exist first.

Config.SetValue MyNewBall Graphic @

This means to create a config section + properties in memory like:

[MyNewBall]
Graphic = @

If you are not familiar with the @ syntax, this is a merging of another section. Specifically: MyNewBall is actually a regular object. The Graphic property would normally be set to a separate Graphic section. But rather than do that, @ lets us specify properties normally in a Graphic section, in the Object section instead. Very handy.

Next, we can set the Texture property:

Config.SetValue MyNewBall Texture ball.png

The following command will set the Scale property on the MyNewBall section:

Config.SetValue Scale 4

The config in memory will now look like this:

[MyNewBall]
Graphic = @
Texture = ball.png
Scale   = 4

Finally, you can create this object with the following command:

Object.Create MyNewBall

You should see a large ball in the middle of the screen.

You can also perform math on values in the stack.

Addition on a value in the stack

In the Bounce.ini configuration file is the following section and property:

[Bounce]
BallLimit = 300

> Config.GetValue Bounce BallLimit

: 300

> + < 2

: 302

The above means: store the result of this calculation onto the stack. Use addition with the + symbol. Pop the last value from the stack which was the 300. Add 2 to this. 302 is stored in the stack.

Division on a value in the stack

> Config.GetValue Bounce BallLimit

: 300

> / < 2

: 150

In the same way as the addition example: store the result of this calculation on the stack. Use division with the / symbol. Pop the last value from the stack which was the 300. Divide this by 2. 150 is stored in the stack.

Subtraction on a position vector

Not just floats and integers. You can use maths on vectors too.

> Object.FindNext Wall1

: 0x00000007000000EF

> Object.GetPosition <tab>

: (-300, -250, 1)

> + < (-1, 0, 0)

: (-301, -250, 1)

In the above, the result is to be saved back to the stack. Addition is the mode selected with +. The vector from the stack is popped, and the (-1, 0, 0) vector is added. So only the first value in the vector is affected. The last two values in the vector, are 0 so no change.

As indicated in the output above, the resulting vector placed back on the stack is (-301, -250, 1).

Pressing tab will just give us the vector. Without losing our vector on the stack, get the Alien ID with:

> Object.FindNext Wall1

: 0x00000007000000EF

Set the wall's new position:

Object.SetPosition <tab> <

NOT Operator

You can perform operations on values, for example, a not operator.

In BounceAlt.ini is the following section and property:

[Bounce]
ShowCursor            = false

> Config.GetValue Bounce ShowCursor

: false

not the value that is popped from the stack, and store the result back to the stack:

> not <

: true

> not <

: false

As mentioned earlier in this guide, commands, especially frequently used ones can become tiresome to type. Autocomplete is helpful, but an alias is often handier. Thankfully Orx allows ways to create aliases for commands.

You can see what current aliases are available with:

Command.ListAliases

The Orx Console comes with over 50 pre-packaged aliases. One of these is the question mark ? which is an alias for Command.Help.

So instead of having to type, for example:

Command.Help Config.GetValue

You can simply type:

? Config.GetValue

We've used Config.GetValue and Config.SetValue throughout this guide quite a lot. It's a little mean to wait until now to mention that there was an alias for both of them:

Get

and

Set

Sorry about that. But it's good to know the full command first and be very familiar. Aliases work with each other. So we can further reduce getting help on Config.GetValue with:

? Get

Now, what about our own custom alias? A very handy one would be something like:

d 1

… to turn on physics debugging or:

d 0

… in order to turn off Physics debugging.

We'd use the Command.AddAlias for this, but we'll check how to use the command first:

? Command.AddAlias

: {orxSTRING Alias} Command.AddAlias (orxSTRING Alias) (orxSTRING Command/Alias) [orxSTRING Arguments = <void>]

So, the command becomes:

Command.AddAlias d Config.SetValue “Physics Debug”

Now you can do a d 0 or d 1

This command is only temporary. If you exit your game or application, it is gone.

However, you can store aliases in your config to persist them. You can do this by adding a Console section to your config file (say: orx.ini), and placing an alias:

[Console]
d = Config.SetValue Physics ShowDebug

The above means: when using the d command and pass a value, it will turn on or off physics debugging. You can use any letter or command you wish if it is not already used. You will need to restart your application to pick up the new setting and re-enter the Orx Console.

You can even go further and have a tricky little toggle command to do the same thing without passing a value. If we used the following command sequence in the Console, Physics debug would toggle:

> Config.GetValue Physics ShowDebug, > not <, Config.SetValue Physics ShowDebug <

However, we can't add this to the [Console] section as a command. It's something we could add to a track perhaps (too messy). Alternatively we can add it to a section, and collect it as part of Orx's lazy execution:

[ComplexCommandSets]
TogglePhysicsDebug = % > get Physics ShowDebug, > not <, set Physics ShowDebug <

I'm not covering lazy execution in this guide, as that is another subject. However, do note that the % symbol here means, if the value is retrieved, it be be executed.

Next, add the getting of the value (and execute it) as the d command:

[Console]
d = get "ComplexCommandSets TogglePhysicsDebug"

Restart your application, and type:

d as a command in your Console to toggle the physics debug.

When making lots of config changes in memory with Config.SetValue or just Set, it would be great to be able to dump this all to disk and pick out the wanted parts to include in our real config files. For now, Orx does not support changing the original file on disk where a section or property originated.

And in many ways, this approach is safer.

You save everything to disk with:

Config.Save myconfigfile.ini

Or with the alias version:

Save myconfigfile.ini

Sometimes you might want to choose a different key to toggle the Orx Console. You may not want to use the default backquote ` key.

You can do this by changing the ToggleKey with:

[Console]
ToggleKey = KEY_SPACE

There are times when you will want to disable the Orx Console entirely for your game or application. Particularly in the case when you are building a release version. You can do this with:

[Console]
ToggleKey =

Some values in the config are static, and some are dynamic. It is not always clear which is which. Some values such as the ShowDebug property in the Physics section is dynamic. If you change this value, Orx will reload it and apply it immediately. Random value ranges are dynamic. Lists are dynamic values:

[Fade]
SlotList = AlphaFadeIn#Scale#Wobble#Vanish

If this list was changed in the config, its change would be applied immediately.

Other values, like floats on a spawner are not dynamic. In the case of a spawner, unless you destroy and recreate a spawner, the changes in values are not applied.

There is a trick around this. See the following section and property:

[Spawner]
WaveDelay = 0.075

By converting this property into a list, the value will become dynamic:

[Spawner]
WaveDelay = 0.075 # 0.075

Hopefully this guide was helpful and is giving you some great ideas of what is possible. Anything you do here in the Console can be used in tracks giving you the same power in-game.

Check out some of the track tutorials and track examples to see how you can apply this.
